GIADA D610 I3 10110U 2XDDR4 2400MHZ

home_software_subheader_sep
DF610








Giada D610 I3 10110U

2xDDR4 2400Mhz

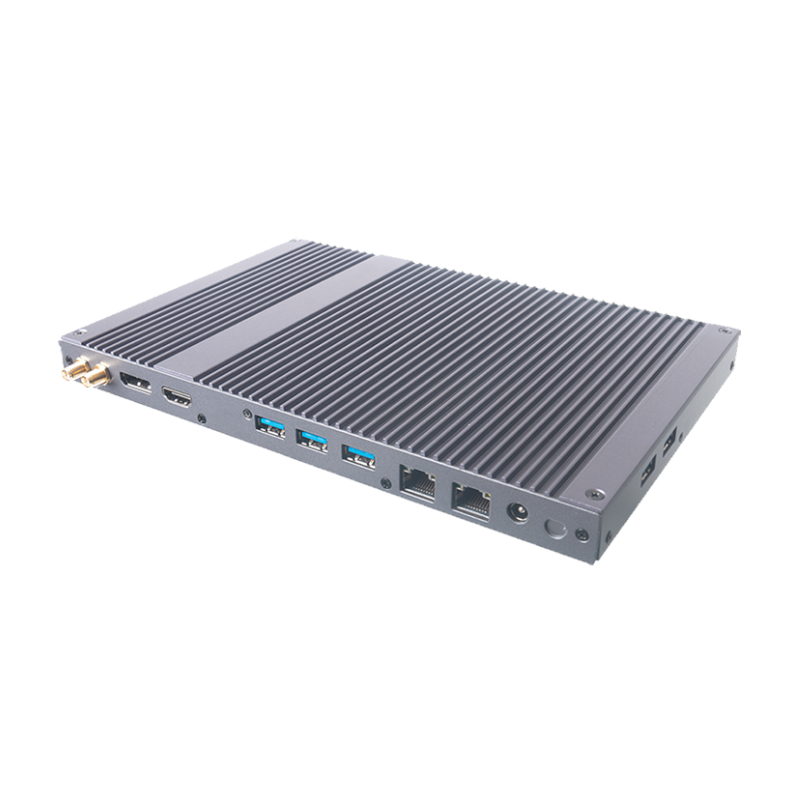

The Giada DF610 i3-10110U Comet Lake High-end Fanless Player is an embedded computer and is ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. Its compact and powerful design brings organizations all the performance and efficiency of the Intel®Core™ i3-10110U CPU, plus one HDMI port and a DisplayPort output with up to 4K resolution support.

  • INTEL(R) CORE™ I3-10110U CPU

  • 1 X DP, 1 X HDMI, SUPPORTING 4K DISPLAY

  • 2 X SO-DIMM DDR4 MEMORY, UP TO 32GB SUPPORT

  • 1 X M-KEY M.2 (2242/2280) FOR SATA/NVME

DF610




Mountable in various ways

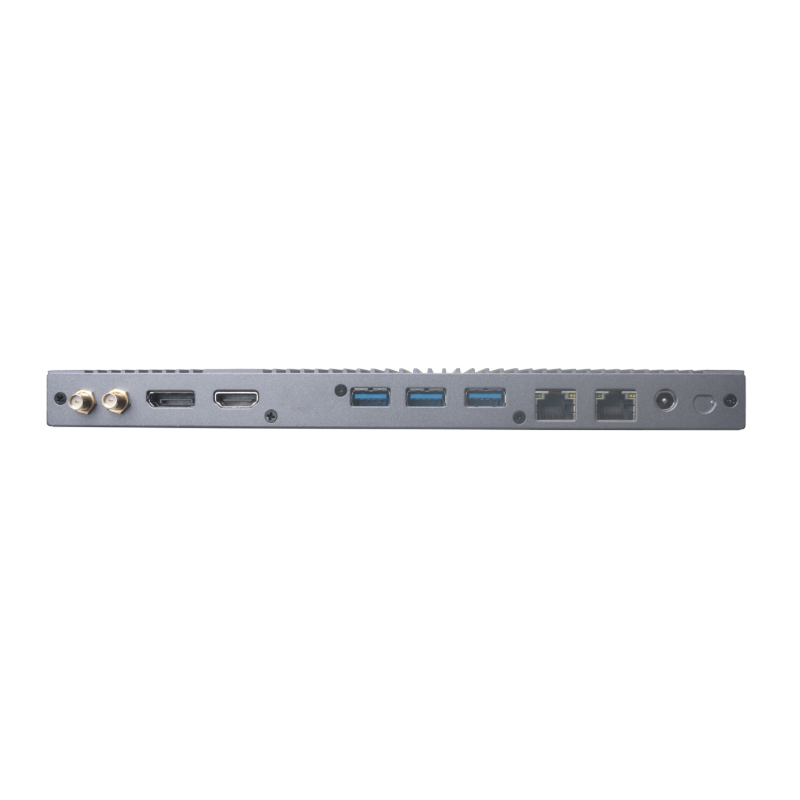

Its HDMI, DisplayPort, USB ports, gigabit LAN, Windows and Linux OS support, and support for M.2 SSDs and mini-PCIe 3G, and 4G cards make it very versatile. It can also be mounted in various ways thanks to its VESA mount support and can easily be hidden behind a monitor or large format display.

Specification

Processor:
  • CPU: Intel(R) Core™  i3-10110U
  • BIOS: AMI Source Code
  • Chipset: SOC
Memory:
  • Type: DDR4-2400MHz
  • Socket: 2 x SO-DIMM
  • Max Size: 32GB
Graphics:
  • GPU: Intel® 10th Gen. UHD Graphics
  • Graphic Engine: Direct3D 2015, OpenGL 4.5, OpenCL 2.1
  • DP: 1 x DP (Max.4096 x 2304 @60Hz)
  • HDMI: 1 x HDMI (Max.4096×2304 @60Hz)
Network:
  • Controller: 2 x Realtek 8111G  Gigabit Ethernet
  • Interface: 2 x RJ45
I/O:
  • USB: 5 x USB 3.2 Gen2 (10 Gbps)
  • Serial Port: 1 x RS232
  • Audio: 1 x AUDIO-OUT, 1 x MIC-IN
  • Mini-PCIe: 1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
  • M.2(2230): 1 x M.2(2230) for WiFi
  • SIM: 1 x SIM Slot
Storage: M.2: 1 x M.2(2242/2280) for SSD
JAHC Tech:
  • WatchDog Timer: 0~255 Second Time Out Support
  • Auto Power On: Power Activated Automatically Start
  • Remote Control: By IR Controller for Power On
  • RTC: Set Up Independently Every day, A Week as a Cycle
  • Wake On Lan: Yes
Operating System:
  • Windows: Windows 10（64-Bit）
  • Linux: Support
Power:
  • Power Type: DC-IN
  • Input Voltage: 19V / 3.42A
Environment:
  • Operating Temperature: 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
  • Relative Humidity: 95%@40℃ (non-condensing)
Certification: CE, FCC Class B, CCC
Construction: Metal
Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ300)
Colour: Black
Product Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX:
  • Giada DF610 i3-10110U Comet Lake High-end Fanless Player x1
  • WiFi Antenna x2
  • User Manual x1
