DIE-CASTING LED R SERIES

R6 / R7

  • R101Pixel Pitch: 2.84mm/3.91mm/4.81mm
  • Module Size: 250*250*17mm
  • Cabinet Size: 500*500*88mm
  • Cabinet Weight: 7kg
Module R6 R7
Pixel Pitch 6.25 mm 7.81 mm
Brightness ≤5500 nits ≤5500 nits
Refresh Rate ≥1920 Hz ≥1920 Hz
Driving Method 1/5 1/4
Grey level 16384 Level 16348 Level
Color Display 4.4 trillion 4.4 trillion
LED Type SMD3535 SMD3535
IP Grade IP65 IP65
Power consumption(Max/Average) 700/235 W/sq.m 700/235 W/sq.m
Cabinet
Module Size (mm) 250×250×17 mm
Cabinet Size(mm) 500×500×88 mm
Cabinet Material Die-casting Aluminum
Cabinet weight(kg) 8 kg 8 kg
Cabinet resolution 80×80 Pixels 80×80 Pixels
Pixel density 25600 Pixels/sq.m 16384 Pixels/sq.m
Application environment
Input AC power voltage 110V-240V
Working temperature -20℃~50℃
Working humidity 10%-95%
Signal type(with video processor) AV, S-Video, VGA, DVI, HDMI, SDI, DP
Control distance cat-5Lan cable:<1000m;single-mode fiber cable:<10kilometer

R_02

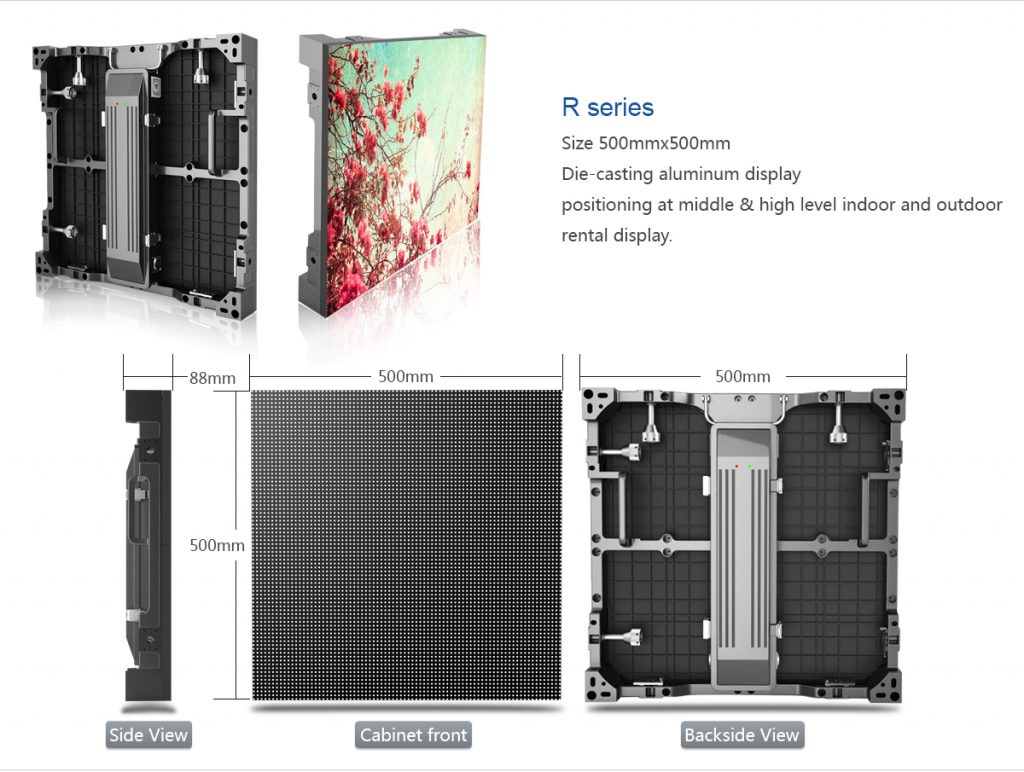

R_03


R_04
